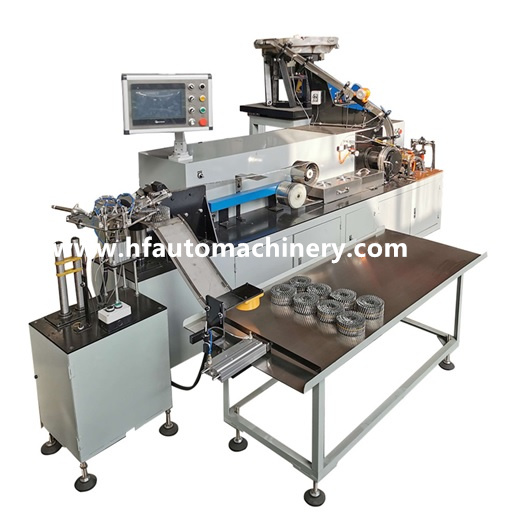

coil nail making machine with rubber band binding machine HAM-JD-100N


Coil nail machine.jpg

Technical parameters:

Model   NO.HAM-JD-100NRemarks
Nail Length   Range25-100 MM1.Speed: The smaller the nails, the faster the   speed.
    2.Welding speed is 3300 pcs/min, which is completely higher than the nail   feeding speed, so there will be no missing or faulty welding when the machine   running at higher speed.
    3.The actual power consumption of this equipment is 3-5KW, which is related   to the speed, nail size, welding current,welding wire diameter, etc.
Nail Dia.   Range1.8-4.5 MM
Maximum Speed
3000   PCS/MIN
    for 25-38 MM
    (nail length)
2500 PCS/MIN
    for 45 MM
    (nail length)
Rated Power8 KW
Welding Power20 KW

Features and Advantages:

1. Fully automatic

A. Automatic rubber band binding (save labor cost)

B. Automatic placing (keep good shape without deformation)

C. Significantly reduce the working intensity, no skill or proficiency requirements

D. Greatly improve the productive efficiency

2. New-designed finished product collection platform

A. Can store 60 rolls of coil nails

B. Direction can be adjusted

3. New-improved welding seat mechanism

No need to adjust the height of welding seat for different size welding disks

4. New patent for coil nail cutting technology

Reducing waste product

5. New automatic shutdown protection functions

The fault location will be displayed on the touch screen

A. Running out of welding wires

B. Welding wire blows

C. Finished coil nails are not cut

D. Running out of rubber band

6. Equipped with independently developed vibrating bowl

A. Dead weight 400kg

B. With two side-pulling electromagnetic coils

C. With six sets of vibrating plates (15°)

D. Bigger diameter bowl (φ850mm)

E. Higher speed

F. Low amplitude of nail jumping

G. Stable performance

7. Independently developed high frequency welding machine

A. With automatic voltage stabilization function

B. With independent touch screen HMI

8. Equipped with a 10” touch screen HMI

A. Working parameters can be adjusted directly

B. It also has perfect fault stop automatic display function

C. Remote operation function
